Chinese Range – LRG

Chinese Wok Range – LRG

General Restaurant Equipment custom manufacturers Commercial Chinese Ranges with the precision and power you need to make amazing stir fry, sauces, and soups at
Asian restaurants and a variety of other establishments since 1982.

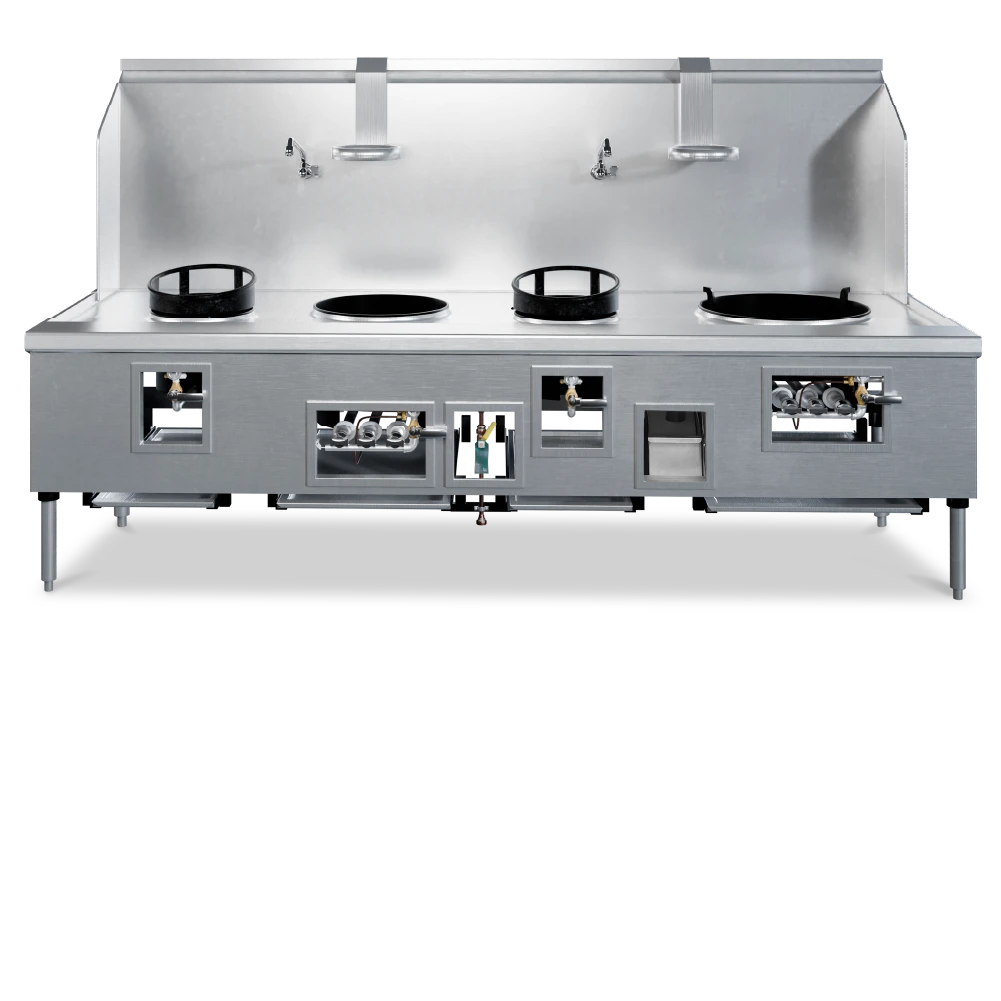

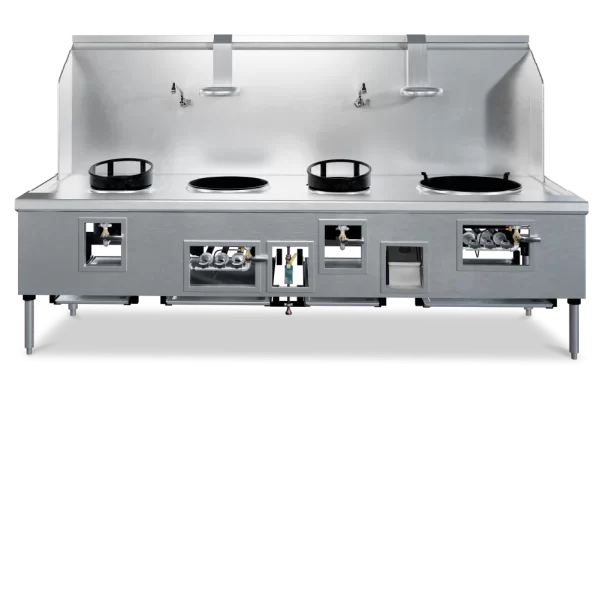

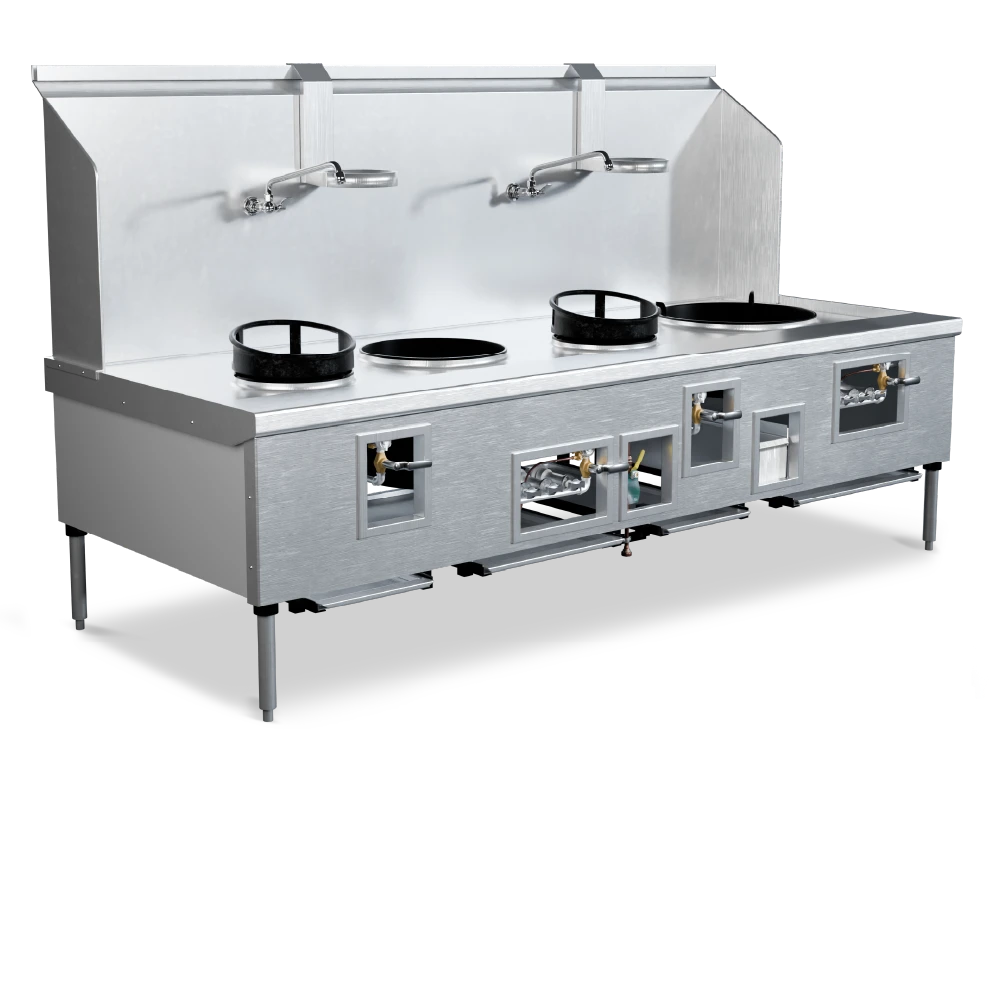

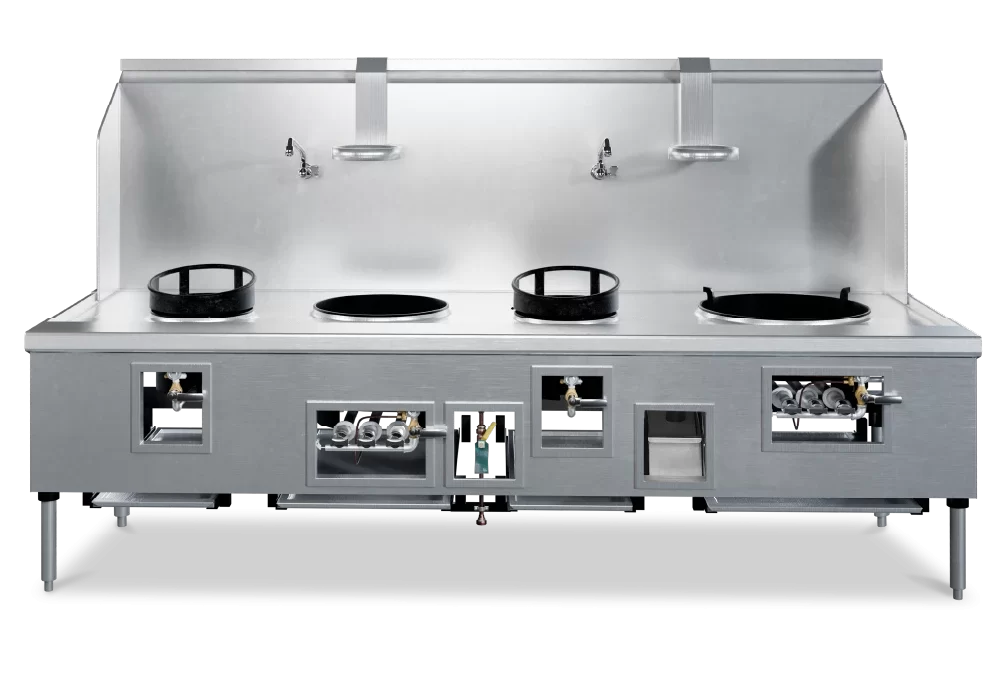

Our custom stainless steel Chinese Ranges are built with 14 gauge polished stainless steel providing you a long lasting range that is made to endure the constant high-volume cooking for many years to come. The commercial Chinese range is equipped with cast iron wok rings that provide optimal heat transfer into range pots with flexible burner type
configurations.

Custom Made for Your
Cooking Style

All our stainless steel Chinese Ranges are custom made. You choose the burner(s) and the location of the chambers, as well as add a variety of options listed below.
The swing faucets are available in both manual and automatic activated by swinging them out toward the operator and deactivated by pushing them parallel to the backsplash helping to provide the most e cient way to fill woks for boiling or rinsing between batches.
One may choose from a “waterfall backsplash” or “water-cooled top” to prevent the deck from overheating to maintain the unit’s longevity. A strainer basket located underneath the deck drains away excess water while preventing chunks of food from clogging the drain line. Cleaning is made easy with the stainless steel or galvanized drip trays to catch any overflow. A natural gas or propane connection is required for operation.

Specifications

Specifications:

14 gauge stainless steel top with removable backsplash and legs.

Body Size:

Customizable with 12″, 13”, 16″, 18″, 20″, 22″ inches in diameter chambers
available

Body Weight:

Depends on the configuration.

Additional Options:

• 12″, 16″, 18″, 20″, 22″ inches in diameter chambers available
• Jet, Duck, and Ring Burner Types
• Natural or Propane Gas
• Water Pot
• Dim Sum Steamer
• Tube Shelving
• Steamer cabinet
• 14 gauge or 12 gauge (thicker) stainless steel deck
• 8” or 10” Oil pan holes
• Spice trays 12”x 12” or 12” x 20” or customizable
• Splash guards

Ranges are available to be picked up, delivered locally, or shipped domestically and
internationally upon request.

Plumbing Requirements:

• 1-¼” gas line(190K BTU) or 2” gas line(610K BTU)
• ¾” cold water
• Floor sink or grease intercept where required.

Connection Point:

• ¾” or 1-½” gas inlet
• 2” drainage outlet to floor sink
• ½” cold water inlet

Gas Information:

• Natural Gas: Manifold pressure 5”WC(water column)
• Propane(L.P.) Gas: Manifold pressure 10”WC(water column)

INPUT – BTU Per Hour Per Burner:

• 20-tip jet – 90,000
• 23-tip jet – 130,000
• 32-tip jet – 190,000
• Duck tip – 90,000
• 2-ring burner – 50,000
• 3-ring burner – 90,000

Clearances:

• Combustible: Side – 6 inches
• Combustible: Rear – 3 inches
• Non-combustible: Side – 0 inches
• Non-combustible: Rear – 0 inches
